Day 13 – Tu, Feb 19th, 2013

Rough schedule for today, summary:

• Discuss the foundation for the drinkz web app
• Form new pairs
• Complete in-class exercise about confidence with topics covered in class
• Complete in-class exercise about WSGI

Web App Foundation

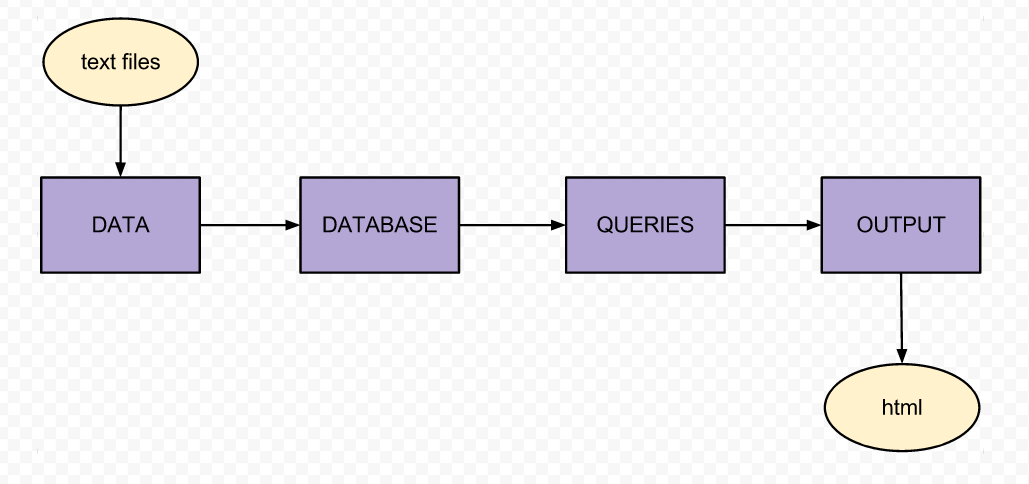

Thus far in class, we have laid a foundation for building a web app. We start from text files, turn it into data, collect the data into an in-memory database allow querying of the database, return query results, and output everything as html files:

In order to develop the drinkz project, we need to expand on certain levels of this foundation. Paths from here are:

• Outputting strings or serving files
• Converting the data structures to a SQL database
• Using web forms to get data or query the database
• Including some form of security/authentication
• Incorporating templating

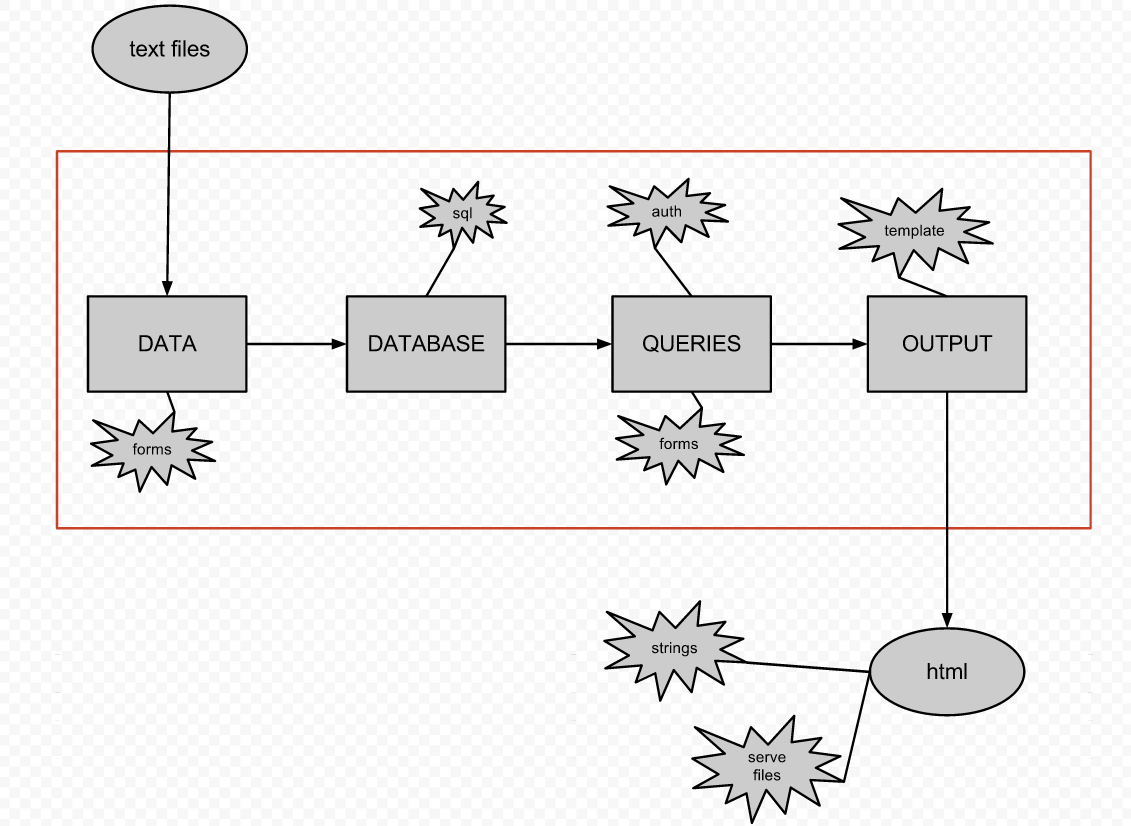

As we add these functionalities to the drinkz framework, we will see a web app emerge:

Pairs

Today’s in-class activities will have assigned groups:

Group #
1	Eric M	Michael M
2	Phil G	Marco B
3	Mike M	Mbozu L
4	Michelle T	Anthony C
5	Jacob W	Alex L
6	Jacob R	Adam P
7	Jon B	Ryan C
8	Ryan T	Adam K
9	Michelle V	Connor G
10	Nikhil A	Wes W
11	Jesus R	Austin H
12	Chris E	Eric Z
13	Marshal N	Anthony B
14	Jieping T	David J
15	James C	David W
16	Matt S	Chris E
17	Hassan A	Madalyn P
18	Yevgeny K	Aaron V
19	Garrett S	Connor G
20	Daniel S

Groups will meet at the following tables:

WSGI

We’re going to get started with a real, live Web server, built using internal libraries from Python.

Running the Web server

Log into arctic.cse.msu.edu, and clone the cse491-webz repository from github/ctb:

% git clone https://github.com/ctb/cse491-webz.git

This repo contains a simple Web server built using the wsgiref module, with a Web application that follows the WSGI specification. Basically, wsgiref handles all of the network stuff, while the WSGI application – here, the ‘SimpleApp’ class in ‘app.py’ – follows the WSGI application spec and serves up all the content. We’ll be writing both a WSGI app (the drinkz stuff) and a WSGI server in this class.

To run the Web server, do:

% cd cse491-webz
% python2.7 app.py

and use your browser to go to the URL that is printed out.

Use CTRL-C to exit the app.py Web server.

In-class TODO

In pairs, please

• read through the app.py source code
• answer the below questions and be prepared to discuss them with ctb
• merge your cse491-linkz work (from Day 12) into the cse491-webz repository, and serve the cse491-linkz stuff via cse491-webz.

Questions:

1. Stop the Web server, modify the HTML printed out next to the top page in the Web server (‘Visit:’ ...), and re-run it. How does your Web browser know how to contact your app.py instead of your neighbor’s?
2. Note that the only content being returned to your Web browser is sent from app.py. Where is the logic in app.py for what is returned, and what is returned by default from this logic (i.e. if nothing specific is matched, what’s the default?)
3. What role does content type play in what is returned? What happens if you return the “wrong” content-type?
4. What variable type is ‘data’?
5. What role does ‘status’ play? What if you return the “wrong” status?
6. What happens if ‘somefile.html’ isn’t present?
7. How does the Web browser know that ‘somefile.html’ is HTML, and that the GIF file content is an image?
8. Why do we generate a random number at the bottom of the script? What happens if you make ‘port’ a fixed number?
9. How is PATH_INFO generated, ultimately? (What do you have to change in the Web browser to change PATH_INFO?)
10. What happens when you ‘print’ something from within app.py – where does it print out, and why?
11. When does __call__ in app.py get executed, and how does the server know when to execute it?

Minute Cards

In the last 5 minutes of class, please fill out this minute card survey.
